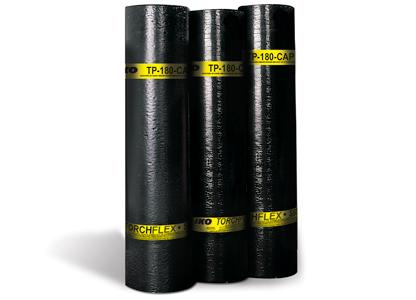

Torchflex TP-180-Cap
Comprised of a non-woven reinforced polyester reinforcing mat which is coated and permeated with SBS modified bitumen to a nominal thickness of 4.0 mm (158 mils). Mineral granules are embedded in the surface to provide superior U.V. protection, while a thin poly-film is bonded to the underside. This product can be applied as the top ply in a two-ply Torchflex system, the top ply in perimeter flashings or as a cap sheet for a conventional BUR.

Torchflex TP-250-Cap
Consisting of a non-woven reinforced polyester reinforcing mat that is coated and impregnated with SBS modified bitumen to a nominal thickness of 4.0 mm (158 mils). Ceramic mineral granules are embedded in the surface to provide U.V. protection and a poly-film is bonded to the underside (which disappears upon heat-welding). TP-250-Cap can be used as a cap sheet in a conventional BUR system, a two-ply Torchflex system, or in roof flashing.

Torchflex TP-250-Cap (5.0 mm)
Produced to a nominal thickness of 5.0 mm, this product is composed of a non-woven, reinforced polyester mat which has been coated and permeated with SBS modified bitumen. Ceramic granules are embedded in the surface to provide UV protection and a light poly-film is bonded to the underside (which disappears upon heat-welding). TP-250-CAP (5.0 mm) can be used as the top ply in a two-ply Torchflex system or in flashing installation.

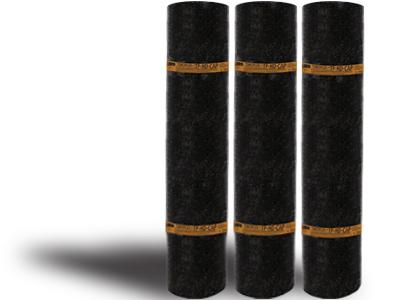

Torchflex TP-HD Cap
This product is reinforced with a tough non-woven composite polyester mat which has been strengthened with a glass fiber scrim in both machine and cross directions. The mat is fully permeated with asphalt and then coated top and bottom with our select polymer blend of SBS to a finished thickness of 4mm. Ceramic, mineral granules are embedded in the surface to provide protection against ultraviolet radiation, and a light poly-film is bonded to the underside (which disappears upon heat-welding). This product is meant to complete the top surface of a 2 ply SBS modified bitumen roofing system. The composite reinforcement imparts tremendous strength and shock absorbing properties to the membrane as well as excellent dimensional stability both before and after application.

Torchflex TP-180-FF Base
Composed of a non-woven reinforced polyester reinforcing mat which is coated and impregnated with SBS modified bitumen to a nominal thickness of 3.0 mm (118 mils). A poly film is bonded to each side which disappears during the heat-welding process. Used as the base ply in a two-ply system. This product will satisfy the requirements of CGSB-37.56-M and ASTM D6164.

Torchflex TF-95-FF Base (2.2)
Consists of a reinforcing mat of non-woven glass fibres coated and permeated with SBS bitumen to a thickness of approximately 2.2 mm (87 mils). A thin poly-film covers both surfaces. Upon application, the top-film will melt with the heat-welded cap sheet while the bottom film dissolves during heat-welding to the substrate. Product can be used as a base sheet with a Torchflex or Armourplast Cap Sheet. Product meets the requirements of CGSB 37.56M and ASTM D6163 for Type I, Grade S materials.

Torchflex HD-FF-Base
Torchflex HD-FF-Base is constructed using a mat of durable non-woven composite polyester mat which has been strengthened with a glass fiber scrim in both machine and cross directions. The mat is fully permeated with asphalt then heavily coated with our select polymer blend of SBS. Both surfaces are covered with a thin poly-film. The top film will melt during the application of the heat welded cap sheet while the bottom film dissolves during heat welding to the substrate. Torchflex HD-FF-Base can be used as the lay-flat base sheet in a layered membrane construction system.
